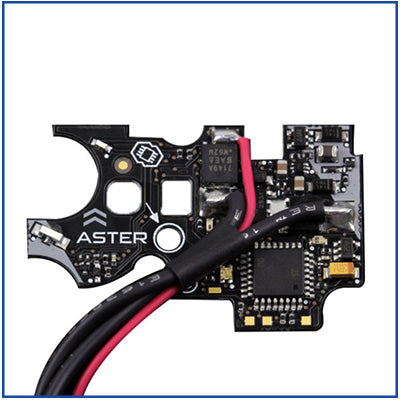

Gate - Aster Mosfet
Roll over image to zoom in Click on image to zoom
Gate - Aster Mosfet

Gate - Aster Mosfet

Fit: V2 Rear Wire (Basic)
Price:
$ 84.95

Pickup currently unavailable at Gilbert Arena

Features:

The younger sibling to the Titan, the Aster is designed to achieve maximum reliability at an attractive price and comes Blu-Link ready!

  • Protection against battery reverse polarity
  • Proximity trigger sensor offering 250 sensitivity settings
  • Optional configuration via trigger or Gate Control Station APP
  • Built-in RGB LED for easy programming
  • Removing of safety lever is not required
  • No gearbox shell modification necessary
  • Optical gear cam sensor
  • Binary trigger function
  • Premium level functionality
  • GCS App for firmware updates via internet connection

SENSORS

Choose one of the two trigger modes and then calibrate even finer with 250 possible sensitivity settings!

  • 1-stage: Standard
  • 2-stage: First stage (SEMI/BURST), second stage (BURST/AUTO)

PROGRAMMING VIA TRIGGER

  1. Fire mode - Blue (unavailable for regional lock)
    1. SAFE/ SEMI/ AUTO
    2. SAFE/ BINARY TRIGGER/ AUTO
    3. SAFE/ SEMI/ SEMI
    4. SAFE/ SEMI/ BURST
    5. GCS setting
  2. Burst - Bright Blue (unavailable for regional lock)
    1. 3rd, Full
    2. 3rd, Trigger
    3. 5th, Full
    4. 5th, Trigger
    5. GCS setting
  3. Battery Protection - Green
    1. Off
    2. LiPo
    3. LiPo with 3.2v warning
    4. GCS setting
  4. Active Brake - Pink
    1. Auto
    2. Off
    3. GCS setting
  5. Advanced Settings - Orange
    1. Read DTC
    2. Clear DTC
    3. Restore default settings
    4. Restore factory settings

    FIRMWARE EDITIONS

    Available in 3 firmware editions: BASIC, ADVANCED, EXPERT.

    BASIC: Best for those who prefer simplicity but require quality. Economic version with limited functions.

    ADVANCED: Best for those who like complex solutions. Advanced version with wide variety of functions. Enables access to Statistics and ASTER World Rankings

    EXPERT: Best for experienced airsofterw. Vast diversity of settings and options combined with maximum configuration capabilities.





      DIFFERENCES

        ASTER TITAN
      MOSFET generation 4th gen 3rd gen
      Application Up to mid-tuned AEGs Up to extremely tuned AEGs
      Max Operating Voltage 12.75v (LiPo 11.1v) 17v (LiPo 14.8v)
      Max ROF 50 RPS 100 RPS
      Gear Sensor Optical gear cam sensor Optical gear tooth sensor
      Pre-cocking Manual with auto voltage drop correction Self-learning
      Assembly Single Board Double Board
      Protection against battery reverse polarity YES NO
      Safety lever compatibility YES Removal Required
      ICS Compatibility Full Modification Required
      KRYTAC gearbox compatibility Bolt catch modification required Bolt catch and gearbox shell modification required
      Trigger Sensor Optical, GEN 1.5 Optical, GEN 1
      Basic configuration via trigger YES As of GBU update
      Binary trigger YES As of GBU update
      Meter function Voltage Voltage, current and more (as of GBU Update)
      Infinite Torque-up gear support YES NO
