Details:
- OEM Replacement Parts
- Work across multiple gun platforms
| Part Number | Varies on Selection |
| Material | Metal, Rubber or Polymer (Depending on Part and Selection) |
| Color | Black or Silver |
| Manufacturer | KWA |
|

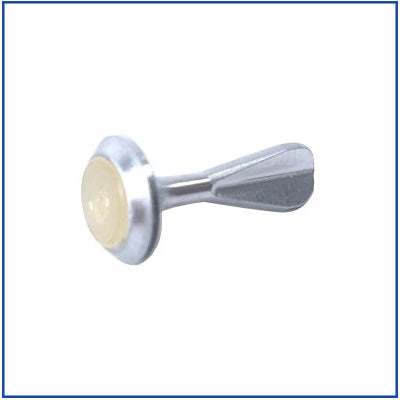

A-1 Jet Nozzle |

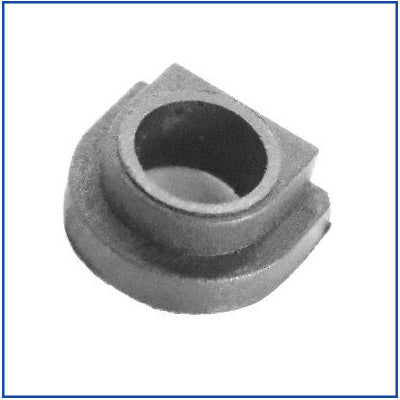

A-2 Firing Pin Sleeve 11 - USP/HK45/M226 6 - KZ75 |

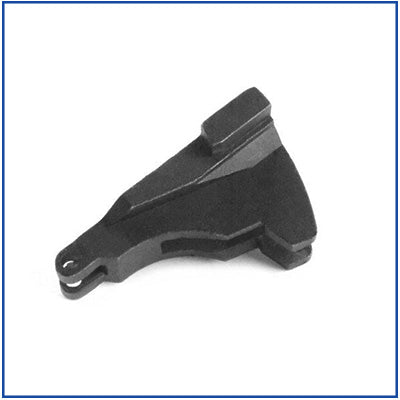

B-5 Locking Block 16 - M9 Series 28 - M93RII NS2 |
|

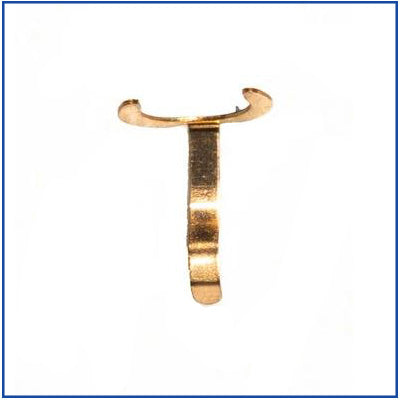

C-10 Hop-Up Tensioner C-10 - LM4 Series C-10 - Kriss Vector C-10 - KZ61 Skorpion C-10 - HK45 |

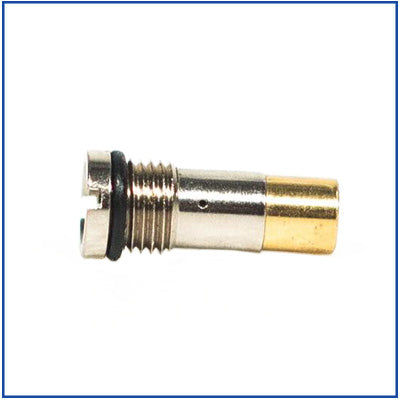

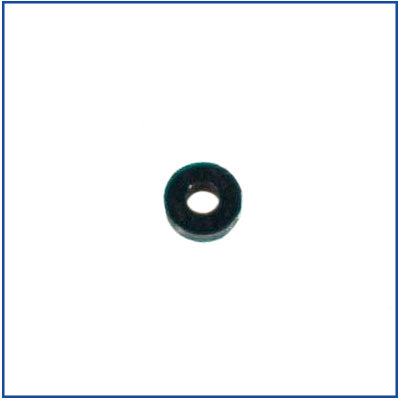

Charging Valve O-Ring All KWA Guns |

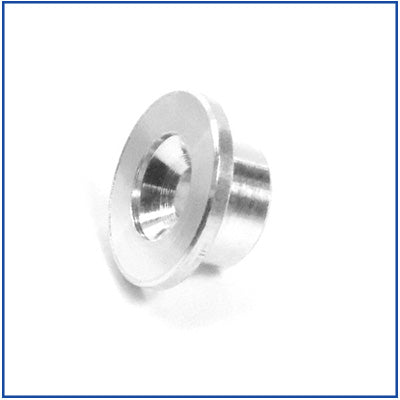

D-10 Main Seal Cap |
|

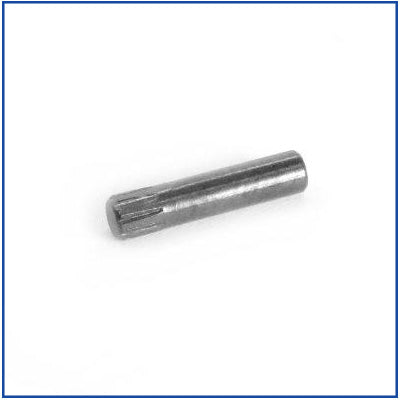

D-22 Locking Block Pin 45 - M9 46 - M93RII |
D-26 Jet Valve Pin 48 - USPC/HK45 129 - M11A1 NS2 53 - M226 49 - 1911 MK Series/A1 128 - KMP9/R |

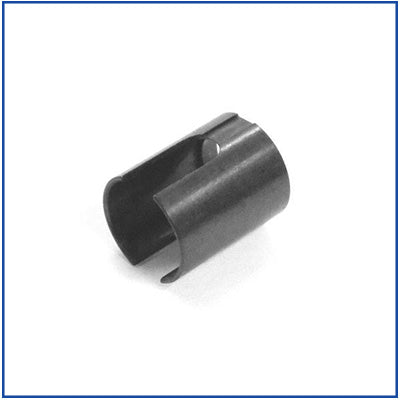

D-72 Hop-Up Cover 328 - HK45 96 - Kriss Vector 79 - KZ61 128 - LM4 PTR |
|

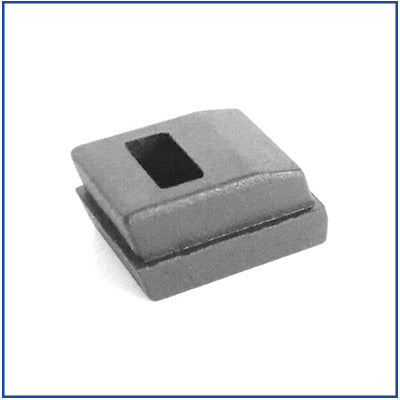

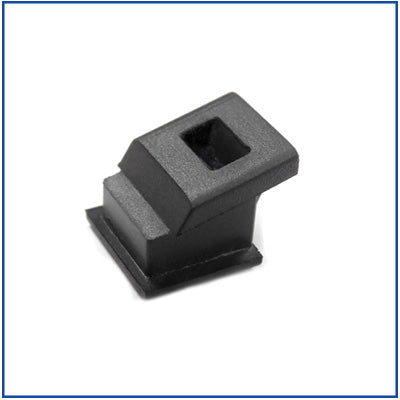

E-5 Magazine Nozzle Seal 1911 MK Series/A1 |

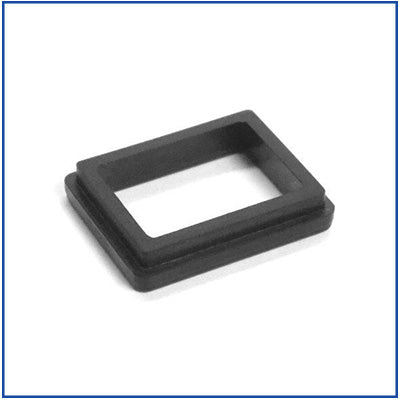

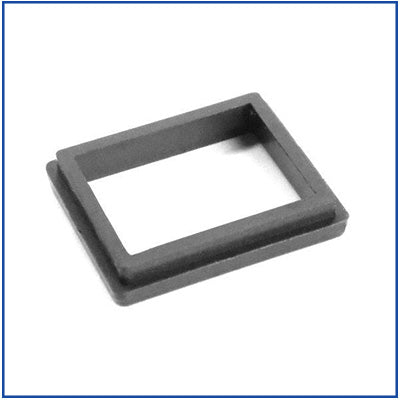

E-6 Magazine Base Seal 109 - M9 PTP 14/46 - M93RII 110 - KZ75 |
E-7 Magazine Nozzle Seal 6 - M93 38 - M93R 103 - M226 103 - M9 |
|
E-8 Magazine Base Seal 95 - M1911 134 - MK23 203 - USP (Standard & HK45) 203 - HK45 |

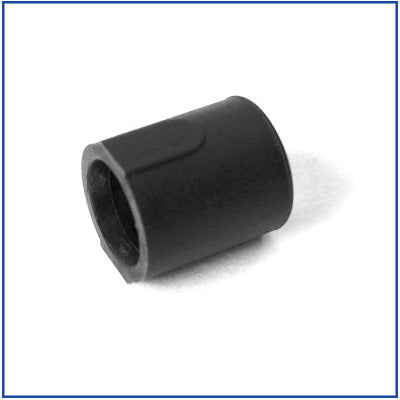

E-10 Hop-Up Bucking 14 - M Series 33 - M9 39 - M93RII 34 - ATP/Auto 95 - MK23 38 - M11A1 37 - M226 62 - MP7A1 87 - M1911MK 29 - KZ75 88 - KMP9 83 - TT33 37 - USP Series |

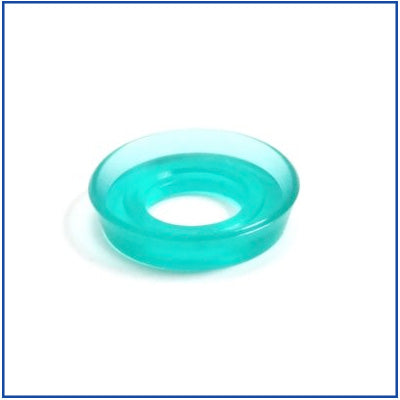

E-12 Main Seal E-12 - USP Series E-12 - HK45 E-12 - MK23 E-12 - M11A1 E-12 - M226 E-12 - M1911 MK Series/A1 E-12 - KZ75 E-12 - M1911 DS E-12 - KZ61 Skorpion |
|

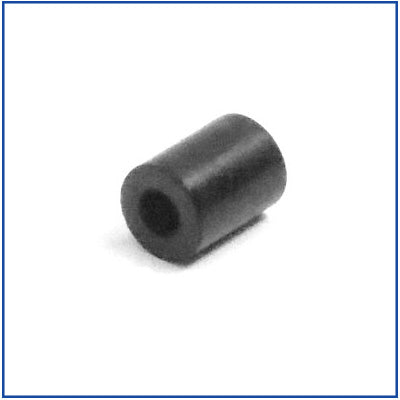

E-13 Hop-Up Nub All KWA AEG Guns |

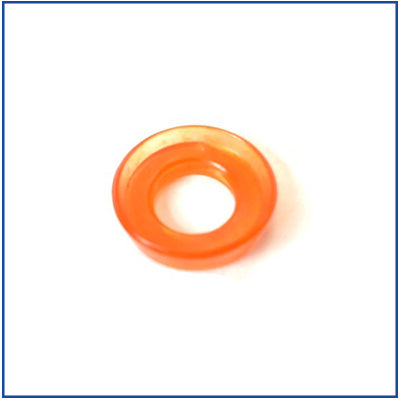

E-16 Main Seal E-16 - M9 Series E-16 - M93R E-16 - MP7A1 E-16 - KMP9R E-16 - TT33 E-16 - MKV |

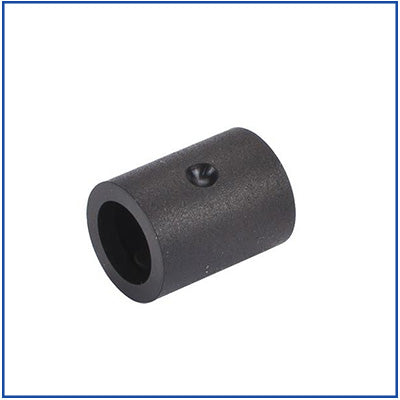

E-19 Hop-Up Bucking 98 - LM4 Series 330 - HK45 62 - Kriss Vector 114 - KZ61 Skorpion |
|

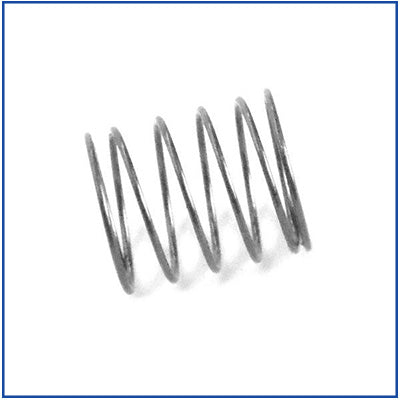

F-6 Firing Pin Spring 73 - 1911 MK Series/A1 78 - 1911 DS 95 - USP Series 80 - MK23 87 - M226 |

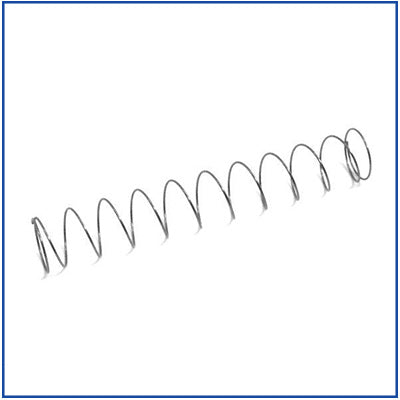

F-9 Jet Valve Nozzle Spring 87 - M9 109 - M93RII 71 - ATP 91 - USP 91 - HK45 81 - MK23 126 - M11A1 71 - 1911 MK Series/A1 77 - KZ75 76 - TT33 70 - MKV |

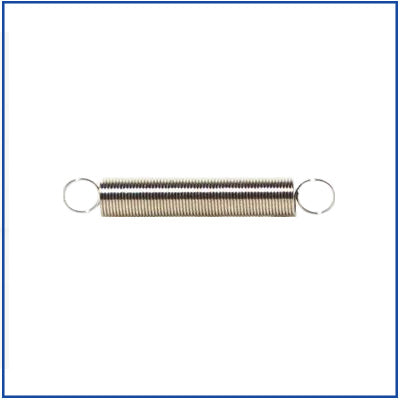

F-12 Cylinder Return Spring 85 - M9 Series/A1 107 - M93RII 92 - USP Series 84 - M226 72 - 1911 MK Series/A1 76 - KZ75 87 - KMP9/R 73 - TT33 69 - MKV |
|

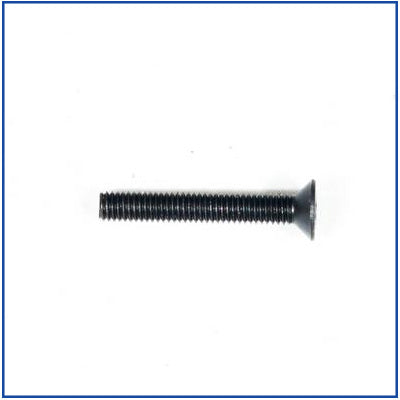

G-101 Screw 248 - LM4 Magazine 92 - M11A1 92 - 1911 MK Series 249 - USP Series |

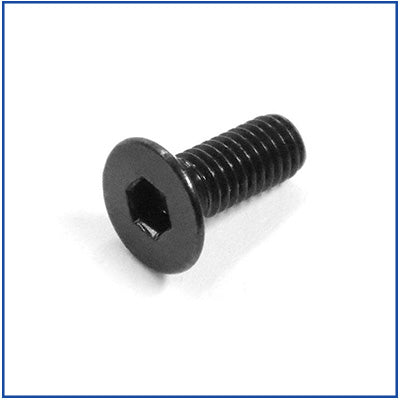

G-103 Screw 503 - Kriss Vector 185 - LM4 PTR 247 - LM4 PTR Magazine |

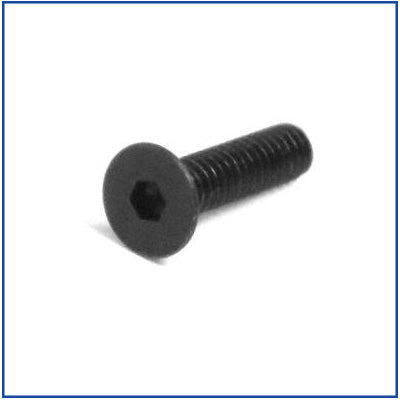

G-105 Screw 69 - M9 501 - Kriss Vector 169 - LM4 204/205 - KM4 AEG 205 - RM4 ERG 365 - RM4 Mechbox |
|

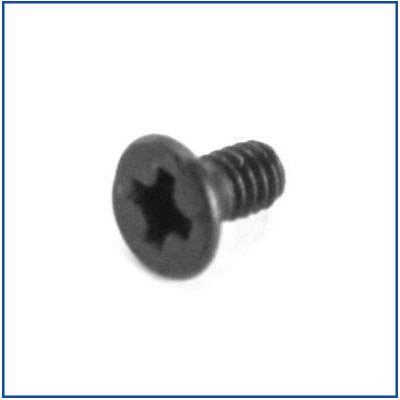

G-203 Screw 130 - M1911DS 90 - M9 PTP 112 - M93RII 116 - USP Series 116.- HK45 100 - MK23 120 - M226 131 - MP7A1 90 - 1911 MK Series/A1 80 - KZ75 87 - TT33 117 - KZ61 |

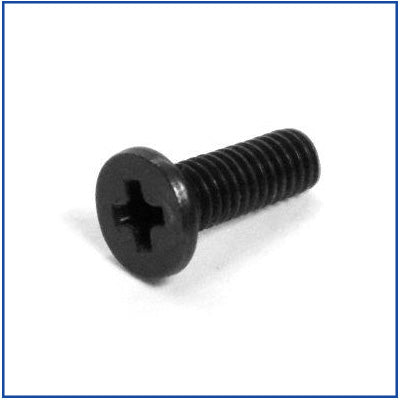

G-206 Screw 97 - M11A1 123 - M226 *KM4 CQR AEGs use a similar screw, part #210. Must be ordered via email josh@vipairsoft.net or by calling KWA directly* |

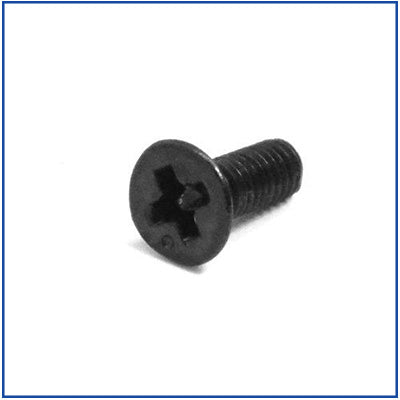

G-209 Screw 109 - ATP 118 - M226 133 - KMP9 206/208 - KM4 |
|

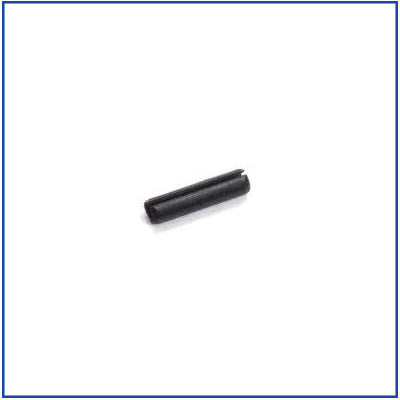

I-4 Roll Pin 92 - M9 120 - M93RII 516 - Kriss Vector 229 - KM4 AEG 377 - RM4 ERG 193 - LM4 PTR 118 - AKG |

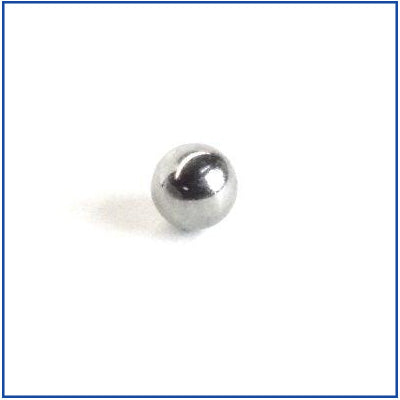

I-6 Ball Bearing 229 - AKG 246 - KM4S 161 - MP7A1 112 - M11A1 108 - MK23 113 - ATP Auto |
I-8 NS2 Magazine Charging Valve I-8 - KWA NS2 Magazines |
|

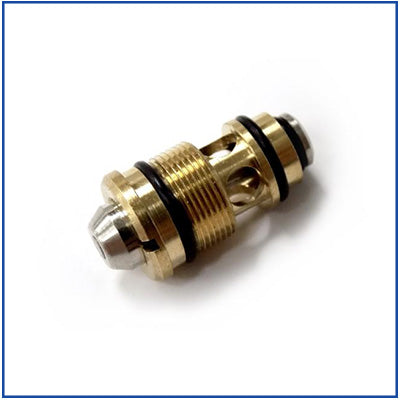

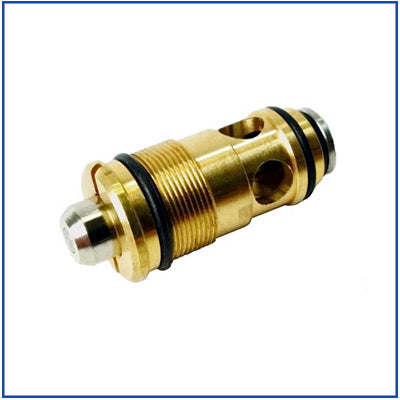

I-9 Magazine Release Valve I-9 - M9 I-9 - M93RII I-9 - ATP Series I-9 - USP Series I-9 - HK45 I-9 - MK23 I-9 - MP7A1 I-9 - KZ75 I-9 - KMP9 I-9 - 1911 MK Series/A1 I-9 - TT33 I-9 - Most GBB *Will NOT fit LM4, M11A1, KZ61 Skorpion* |

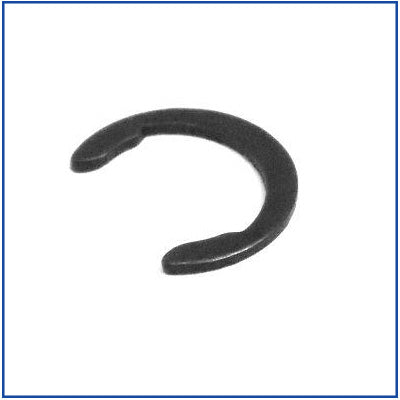

I-20 Hop-Up Cylinder Retaining C-Clip 332 - HK45 103 - M11A1 109 - KMP9 522 - Kriss Vector 124 - KZ61 Skorpion 127E - LM4 Series |

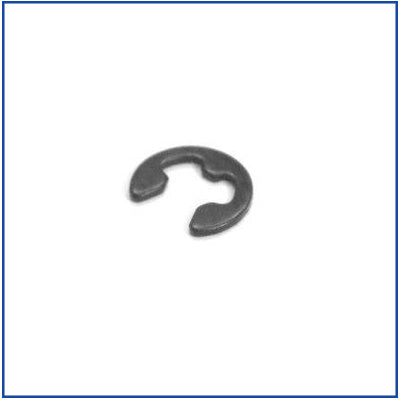

I-23 E-Clip KM4/RM4 Series - 242 LM4 PTR - 209 |
|
I-37 Magazine Release Valve 246 - LM4 Series 246 - AKG Series |

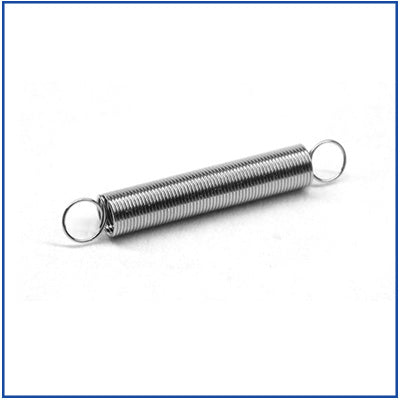

NS2 Cylinder Return Spring Most KWA NS2 Models |
