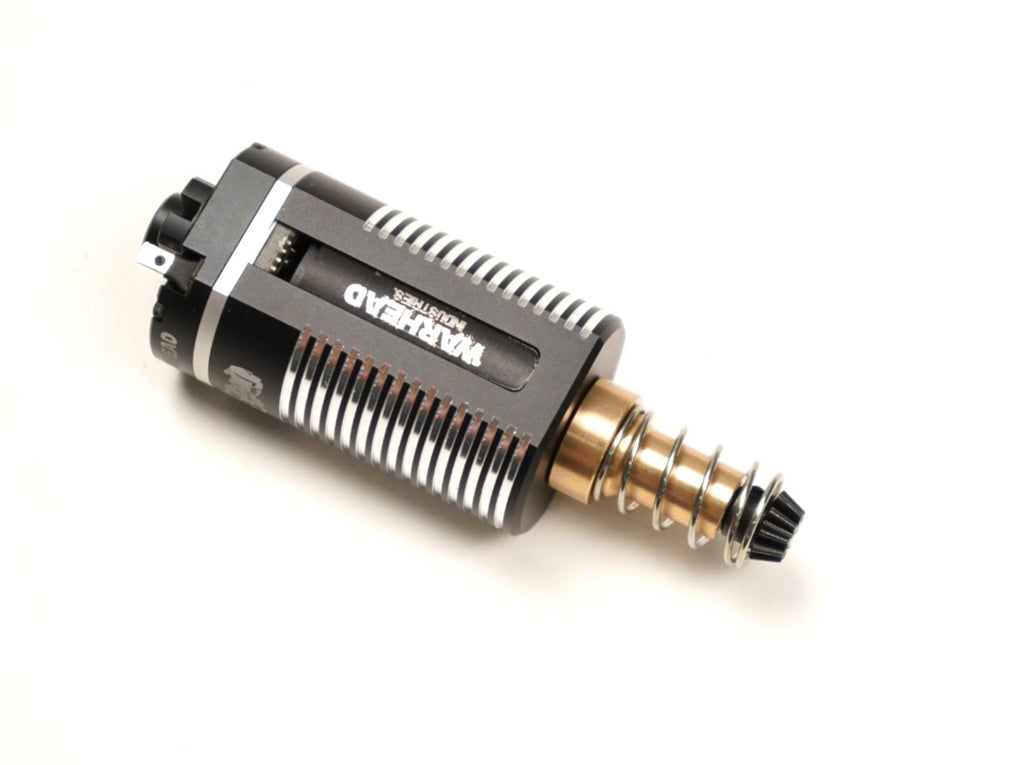

Warhead Ind. Brushless Motor

Size: Long Shaft
Style: Ultra High Speed
Sale price$ 154.95

Pickup available at Gilbert Arena

Usually ready in 24 hours

The Warhead Aeg Brushless motor is the ultimate upgrade for you aeg.

Operating voltage - 7.2v - 11.4v (2 to 3 cell lithium polymer battery)

Brushless DC motors have no brushes to get worn out, they represent a huge leap forward in technology. Brushless output significantly higher efficiency and performance, and have a lower susceptibility to mechanical wear than their brushed counterparts.



  • 7075 Aluminium high quality casing
  • Total custom in-runner design with maximum power and torque
  • High temeprature resistant quality copper windings
  • High quality magnets
  • Internal ESC with over amp draw and low voltage cut off to protect the motor and battery.
  • High Precision CNC design
  • High quality D-cut removable pinion gear for easy switch outs


RPM Information:

Standard 20,000RPM at 7.4v - 30,000 RPM at 11.1v

High Speed 25,000RPM at 7.4v - 36,000 RPM at 11.1v

Ultra High Speed 35,000RPM at 7.4v - 52,000 RPM at 11.1v


Brushless motors offer several other advantages, including;

  • Higher torque to weight ratio

  • Increased torque per watt of power input (increased efficiency)

  • Increased reliability and lower maintenance requirements

  • Reduced operational and mechanical noise

  • Longer lifespan (no brush and commutator erosion)

  • Elimination of ionizing sparks from the commutator (ESD)

  • Near-elimination of electromagnetic interference (EMI)

  • Easy to fit with no modification or additional wiring required
